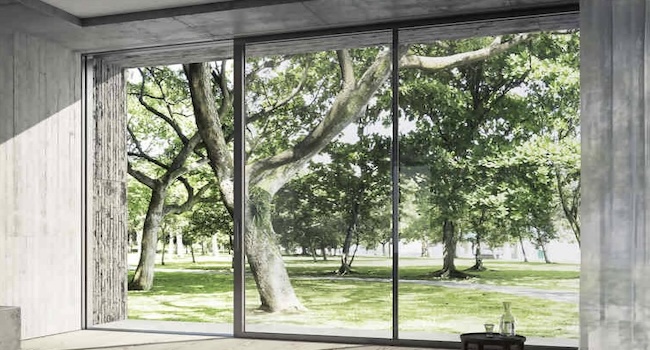

The Schuco ASE60 lift and slide patio door can be built into the fabric of the building giving super slim sight-lines to maximise the view on these panoramic ASE60 doors.
Schuco ASE60 Lift and Slide an award-winning, innovative Patio Door.
Create a calm, bright atmosphere for your home with living spaces that are flooded with light.
Flexible Features for a Guaranteed Fit
Schuco ASE60 Patio Doors
Experience the high-quality design, ease of operation and individual configuration options offered by the Schuco ASE60 Lift and Slide
Schuco’s ASE60 has been awarded the German Design Award 2020, the Red Dot Design Award 2019 and the iF Design Award 2019 for its sophisticated design and unparalleled performance. Setting the standard in sliding doors, Schuco continues to optimise and expand their product range with improved thermal insulation, different track options, an expanded size range, and slimline profile constructions.
The first time you experience the Schuco ASE 60 lift and slide doors, you may be surprised how easy they are to move. Their aluminium construction and technical design mean that opening up your home to the outdoors has never been simpler or more enjoyable. And, when closed, the doors are perfectly weathertight for excellent thermal insulation and noise reduction so that you can enjoy the view, from the comfort of your couch.
The Benefits of the Schuco ASE60 Lift and Slide Patio Door
A premium triple-glazed door designed to bring together the elements of indoor comfort and outdoor beauty.
Aesthetic Excellence
Schuco’s Design Line features a narrow interlock section and, at only 40mm, the ultra slimline interlock offers maximum transparency. Modern fittings ensure that the security components aren’t visible from the outside for high levels of security, without compromising on the door’s aesthetic appeal.
Enhanced Thermal Insulation
When chosen as an 80mm deep system, the excellent thermal insulation values (up to passive house standards) make the doors the ideal solution, balancing both design and comfort requirements.
Schuco ASE60 Lift and Slide Advanced Design Options
SmartStop brings the lift and slide panel to a full stop at a finger safe distance from the frame allowing the user to safely complete the closing and locking of the door.
SmartClose brings the lift and slide panel to a stop at a finger safe distance and continues slowly pulling the door into the frame. The user can then complete the locking of the door.
Tip-tronic opening and closing the full monty this unlocks and opens the door at a touch of a button or remote. It can then also close and lock the door. The closing operation has a safety feature if anything gets in its way the closing operation stops.
Ease of Access
The Design Line has a level threshold making it simple to make the access connection from inside to outside. The range makes use of only the highest quality components, ensuring that large vents can be operated easily.
Minimalist Sight-lines
The ASE60’s vent frames have reduced face widths, and all the fittings components are concealed within the vent in a panel for an enhanced slender appearance. Flexible locking options mean that the bolt pins can also be fixed in the vent frame rather than the outer frame.
Flexible Control Options
The doors can be controlled either through wall-mounted switches, operating switches on the vent, via the Schuco app or through a connection to your home automation system. Schuco’s Building Skin Control System means that units can also be controlled by using voice commands.
Customisation Available
The Schuco ASE 60 allows individual requirements to be incorporated into large-scale units with a variety of opening types including single, double and triple-track systems for greater design freedom. The units can fit an aperture of up to 3.5 m x 3.2 m or 3.2 m x 3.5 m. They can be opened to one side or from the middle. Up to three tracks allow for larger opening widths and more flexible installation options.
What is the difference between the Schuco ASE60 and the Schuco ASE80?
The key differences between the two models are the U-values, frame depth and glass thickness. In general, the ASE60 is a good match for new build applications, and for replacement projects, the deeper frame depth of the Schuco ASE 80 is sometimes a better option.
Feature ASE 60 ASE 80.HI
Opening Types 15 15
Track Options Single, double or triple Single, double or triple
Frame Depth 60mm 80mm
Typical best U-Value 1.1Wm2K Passivhaus Standard
Weathered Low threshold Design Line Design Line
Open corner option Yes Yes
Glass thickness 24mm to 40mm triple 36mm to 60mm triple
Thinking of the Schuco ASE 80? Have a look at the options here >
The Ideal Lift and Slide System for a Range of Applications
Changing lifestyles and priorities mean that you need a sliding door solution that matches your home and your preferences. With the latest generation of ASE60 sliding doors from Schuco, there’s no need to compromise. You can get unrestricted ease of access, making it easy to move between indoors and outdoors, while still enjoying a beautiful minimalist design, robust construction and maximum comfort.
Along with excellent thermal insulation values, the ASE 60 offers a solution that ticks all the boxes in terms of design and comfort. It can be easily customised to individual requirements and scales to match large-scale units.
Schuco products have long set the standard in technical excellence, combining thermal efficiency with design innovation. As leaders in the European market, their aluminium systems consistently exceed industry and compliance standards.
The Schuco ASE60 Lift and Slide range showcases the Schuco commitment to ongoing optimisation and innovation. The ASE60 (along with the ASE80) is a result of this ongoing development. The Aluminium Sliding Element improvements offer optimised insulation zones for significantly better thermal insulation properties – even up to passive house level with a basic depth of 80mm.
They’ve also focused on making the range accessible where all versions of the system are based on multi-functional profiles (single, double and triple-track), which allows for the use of identical parts. In addition, the modular fittings system can be used for both sliding and lift-and-slide fittings. In fact, with a few exceptions, the components for both basic depths are interchangeable.
With an expanded range of sizes, ultra-slimline profiles and colour solutions that include the bimetallic effect and pioneering thermal insulation, the ASE60 fulfils an unlimited number of architectural design options.
Best in Class the Schuco ASE60 Lift and Slide Patio Door Supply and Installation
We’re known throughout the UK for our gold standard supply and installation of Schuco patio doors. Whether you’re working on a new build or need a new patio door for your home renovation, we can help. Please get in touch today for a competitive, no-obligation quote.
